專題文章 : 2020年9月份Mini-Circuits新產品發佈-Adapters & Couplers



KMR-KM50+

Adapter Right-Angle 2.92 mm-M to 2.92 mm-M

50Ω DC to 40 GHz

• Ultra-wideband, DC-40 GHz

• Flat response

• Low insertion loss, 0.13 dB typ.

• Excellent VSWR, 1.06 typ. up to 20 GHz and 1.15 typ. up to 40 GHz

• Low cost adapters, available from stock

• Rugged stainless steel body, passivated and gold-plated berillium copper center contact

• Can interface with SMA connector



Applications

• Interconnection of RF cable and equipment

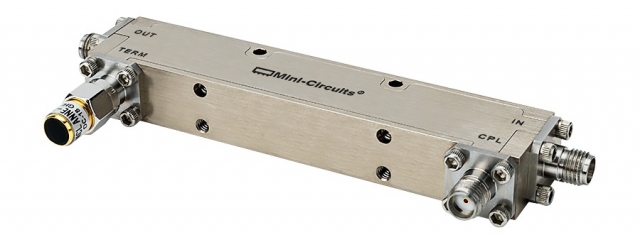

ZCDC20-01203-S+

Directional Coupler

50Ω 20dB Up to 20W 1 to 20 GHz

• Wideband, 1 to 20 GHz

• Excellent Coupling Flatness, ±0.26 dB typ.

• Power Handling up to 20W

• Wide frequency range, 1 to 20 GHz

• Good directivity, 19 dB typ. up to 20 GHz

• Good return loss, 21 dB typ. up to 20 GHz

• DC current pass through input to output



Applications

• 5G

• Mobile

• Fixed satellite

• Lab use
